Hp Envy 4-1010US 14″ Screen Replacement

Hi and welcome to 365 Laptop Repair. This is a tutorial on how to do a Hp Envy 4-1010US 14″ screen replacement. There are a few things you are going to need to complete this repair. In this tutorial we will be using tweezers, a prying tool, a philips head screwdriver, and optionally a power philips screwdriver. You will also need a replacement LCD screen that is for your laptop. You can purchase a replacement from us at: http://www.365laptoprepair.com/Product/Hp-Envy-4-1010US-14

Screen replacement video

Teardown video

If you don’t have the required tools or don’t want to do the repair yourself, send it to us and one of our experienced technicians will fix it for you! Visit our laptop repair form or repair estimate page for more information.

Tools Needed: Phillips head screwdriver (optional – power screwdriver), Tweezers, Prying tool

Removing the old LCD screen

First you have to remove the plastic bezel surrounding the screen.Remove the 2 screws (circled in blue below) at the bottom of the screen that hold it in. The screws are covered by small round plastic pieces. Use your prying tool to gently remove the these covers, and then remove the 2 screws underneath.

Bezel screw locations

The bezel is also held in by clips and by adhesive tape. Use your fingers to lift up the inside of the bezel at the top of the screen. Then insert a finger under the bezel and run it carefully along the top to disengage the clips that hold it in. Once you get to the edges and sides, you many need to use your prying tool to help you separate the rest of it.

Using a finger to lift the bezelBezel finger pry.png

Bezel pry close.png

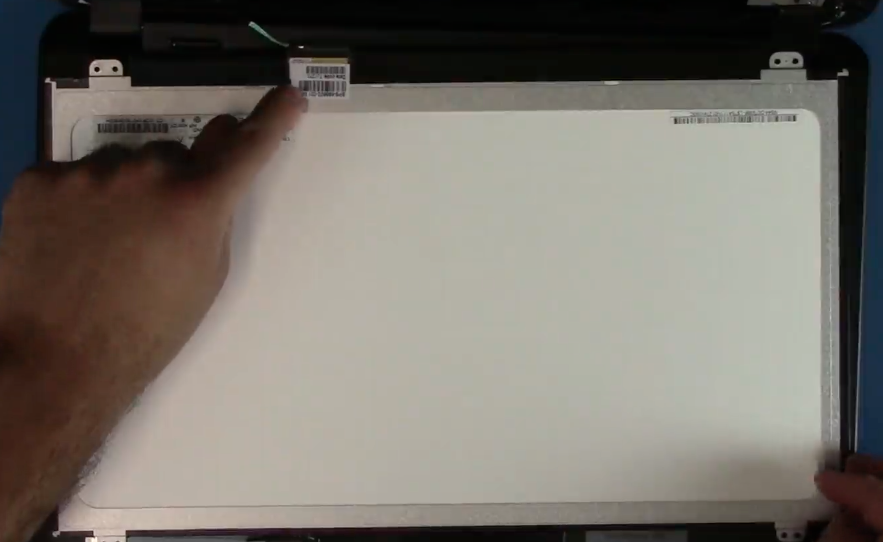

Once the bezel is removed, there are 4 screws (circled in red below) that hold in the screen that need to be taken out. When the screws have been removed, gently lift up the LCD screen to separate it from the case.

Screen screw locations

Gently lay the LCD face down on the keyboard On the back at the bottom you will find a gold connector attached to the screen. Loosen the stickers covering the connector and disconnect it. Set your old LCD screen aside and get out your new LCD screen.

Gold screen connectorGold connector.png

Gold connector disconnected.png

Installing your new LCD screen

With your new screens face down, reconnect the gold connector and replace the stickers covering it. Then put the screen back into its place making sure it is fitting correctly. Next replace the 4 screws that hold in the screen.

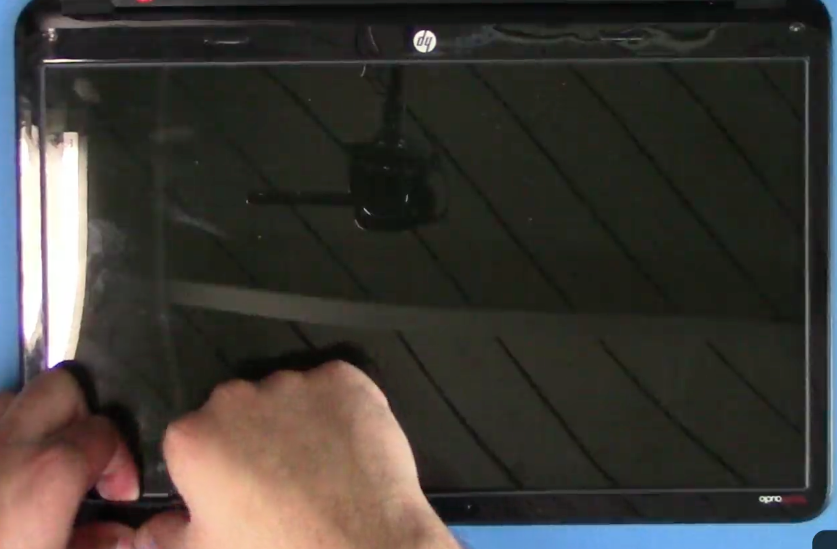

Then retrieve the plastic bezel and situate it properly. Finally, run your hands along the edges of the screen, snapping the bezel back into place as you go. Replace the 2 screws that hold in the bezel and their screw covers.

Hp Envy 4-1010US 14″ screen replacement complete

With the completion of this tutorial, you now know how to replace the screen on your Hp Envy 4-1010US 14″ laptop.

If you would like to have your computer repaired for you, send it to us at 365 Laptop Repair and one of our experienced technicians will do it for you. Visit our laptop repair form or our repair estimate page for more information.
